Tension Cable - Removal

REMOVAL





1. Release the soft top latches and open the soft top.
2. Remove the foam tape (2) and expose the screws.

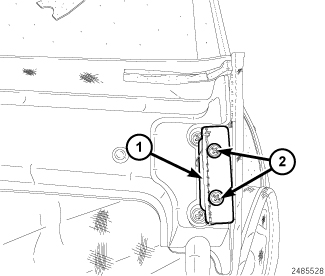

3. Remove the screws (2) and release the cable tab (1).





4. Release the rear quarter window.

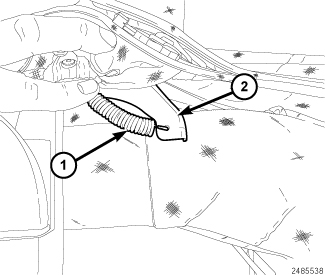

5. Position the soft top aside and release the cable spring (1).
6. Position the top in the full up position, unlatched and remove the cable.
