Outside Rearview Mirror - Installation

INSTALLATION

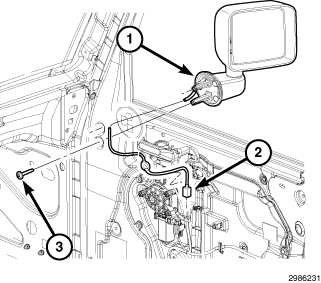

1. Tie the string used during removal to the wire harness (2).
2. Using the string, guide the wire harness through the door panels.
3. Install the mirror (1) onto the door and install the bolts (3).
4. Tighten the bolts to 13 Nm (9.5 ft. lbs.).
5. Connect the electrical connector (2).
6. Install the door trim panel. Front Door Trim Panel - Installation
