Lock Cylinder - Removal
REMOVAL

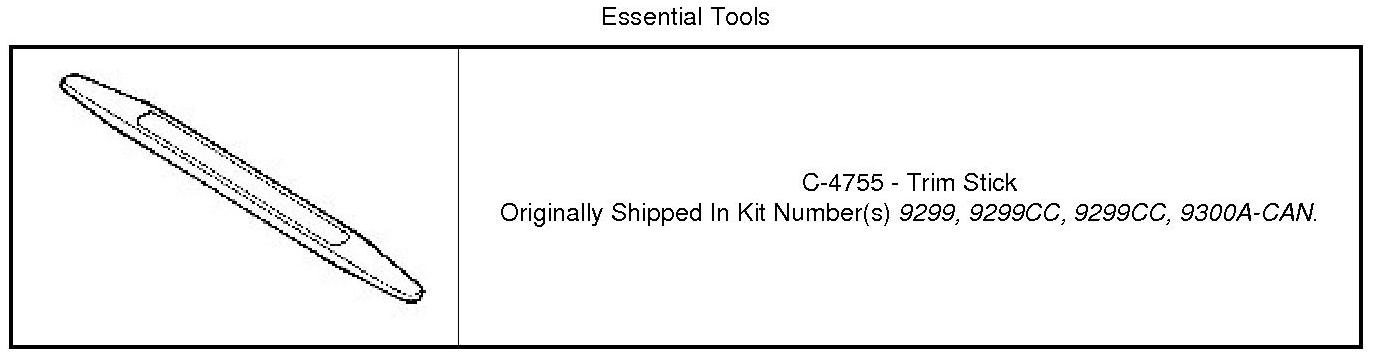

Special Tools:
1. Using a trim stick or equivalent, remove the inner latch trim (2).

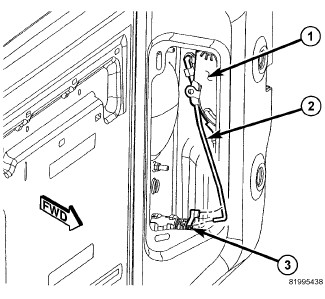

2. Release the clip (3) and disconnect the lock rod (2).
3. Remove the clip (5).

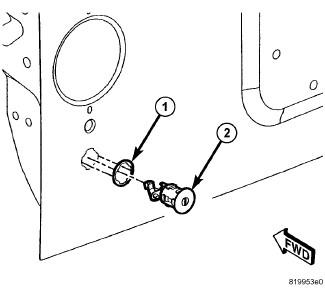

4. Remove the lock cylinder (2) and the gasket (1).
REMOVAL
Special Tools:
1. Using a trim stick or equivalent, remove the inner latch trim (2).
2. Release the clip (3) and disconnect the lock rod (2).
3. Remove the clip (5).
4. Remove the lock cylinder (2) and the gasket (1).
