Front Full Door Lock Cylinder - Removal
REMOVAL
1. Remove the carrier plate.Front Full Door Carrier Plate - Removal.

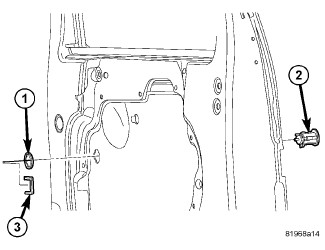

2. Remove the clip (3) and separate the lock cylinder (2) and gasket (1), from the door.
REMOVAL
1. Remove the carrier plate.Front Full Door Carrier Plate - Removal.
2. Remove the clip (3) and separate the lock cylinder (2) and gasket (1), from the door.
