Exterior Handle - Removal
REMOVAL

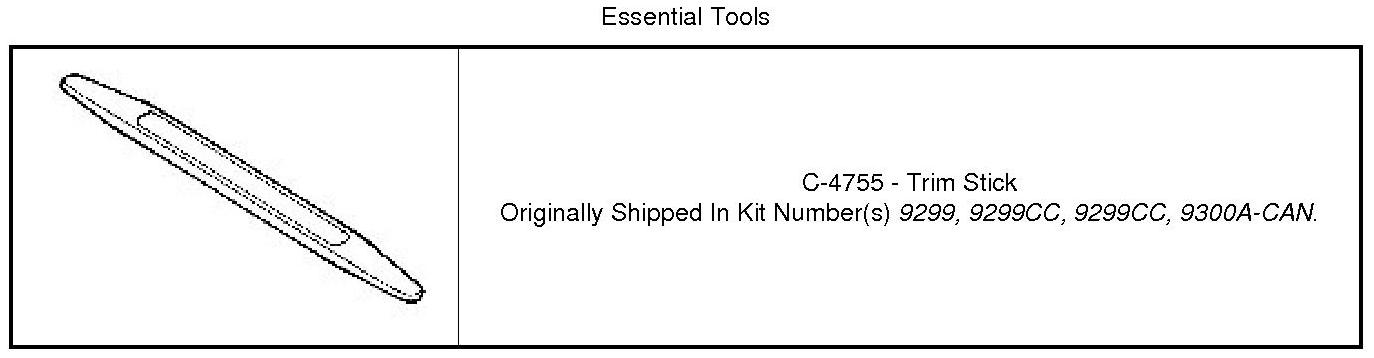

Special Tools:

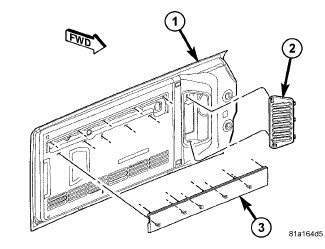

1. Using a trim stick or equivalent, remove the inner latch trim (2).

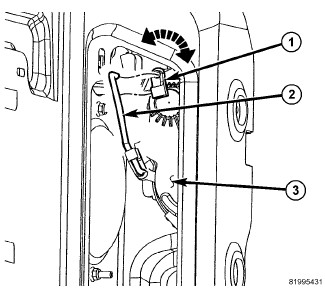

2. Disconnect the latch rod (2) from the handle (1).

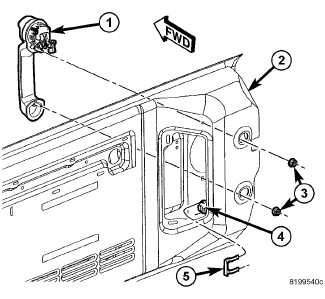

3. Remove the nuts (3) and remove the handle (1).
REMOVAL
Special Tools:
1. Using a trim stick or equivalent, remove the inner latch trim (2).
2. Disconnect the latch rod (2) from the handle (1).
3. Remove the nuts (3) and remove the handle (1).
