Hood Catch - Installation
INSTALLATION

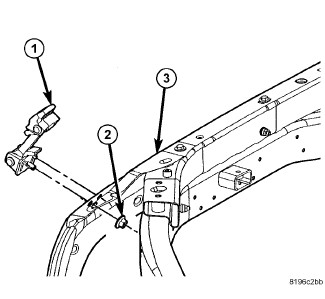

1. Install the catch bracket (2) and install the nuts (1).
2. Tighten the nuts to 7 Nm (5 ft. lbs.).

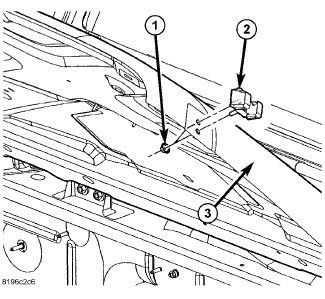

3. Install the hood catch (1) and install the nuts (2).
4. Tighten the nuts to 15 Nm (11 ft. lbs.).
INSTALLATION
1. Install the catch bracket (2) and install the nuts (1).
2. Tighten the nuts to 7 Nm (5 ft. lbs.).
3. Install the hood catch (1) and install the nuts (2).
4. Tighten the nuts to 15 Nm (11 ft. lbs.).
