Hood Hinge - Installation

INSTALLATION





1. Position the hinge (1) onto the hood (3).
2. Install bolts (2) finger-tight.
3. Align hinges with installation reference marks made previously and tighten bolts to 26 Nm (19 ft. lbs.).

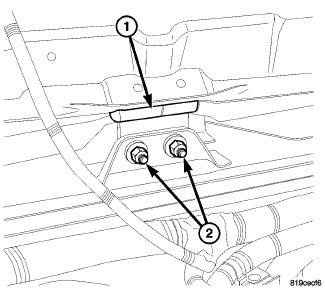

4. Install the hinge to body bolts (2).
5. Align hinges with installation reference marks made previously and tighten bolts to 24 Nm (17.5 ft. lbs.).
6. If required, adjust the hood to the correct position.





7. Install the cowl top panel (3), Cowl Panel Cover - Installation.
