Cowl Panel Cover - Installation

INSTALLATION

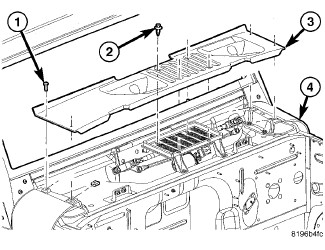

1. Install the cowl trim panel (3) to the body (4) of the vehicle.
2. Install the push/pins (2) to the cowl trim panel (3).
3. Install the bolts (1) to the cowl trim panel (3).
4. Install the wiper arms, . Wiper Arm - Installation
