Rear Bumper - Installation

INSTALLATION

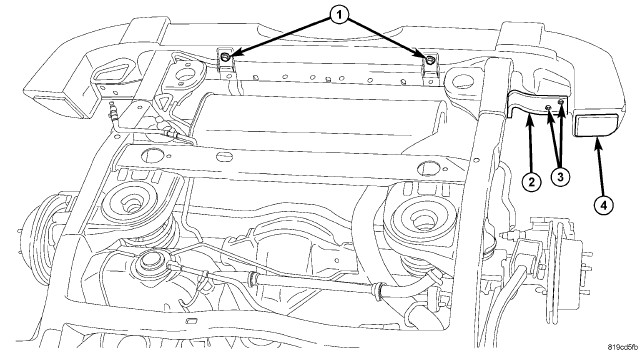

1. Install the bumper (4) and install the bolts (1) and (3).
2. Tighten the bolts (1) and (3) to 25 Nm (18.5 ft. lbs.).
