Front Bumper - Installation

INSTALLATION

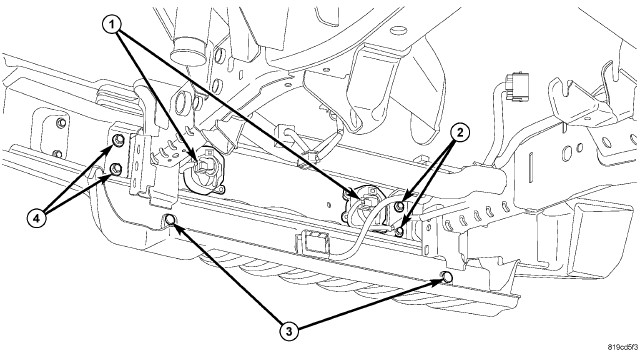

1. Install the bumper and install the inner (2) and outer support bolts (4).
2. Tighten the support bolts to 90 Nm (66.5 ft. lbs.).
3. Connect the electrical connectors (1).
4. Install the splash shield and install the push pin fastener (3).

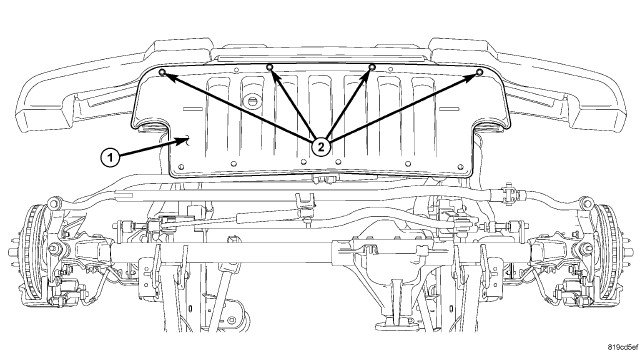

5. Position the splash shield (1) onto the bumper and install the push pin fasteners (2).
