Hands Free Module (HFM) - Installation

INSTALLATION

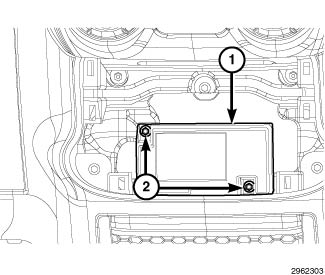

1. Connect the electrical connector and install the Hands Free Module (HFM) (1).
2. Install the HFM mounting retainers (2).

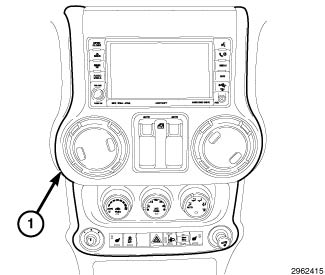

3. Install the instrument panel center bezel (1) Instrument Panel Bezel - Installation.

4. Connect the negative battery cable.
