Microphone - Removal

REMOVAL






NOTE: Passenger side shown, driver side similar.

1. Remove the drivers side A-pillar trim panel (2) A-Pillar Trim Panel - Removal.

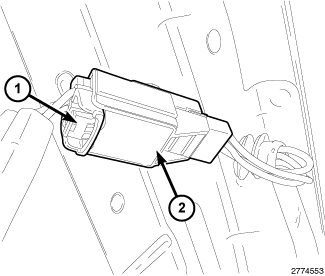

2. Disconnect the microphone harness (1) from the instrument panel harness (2).

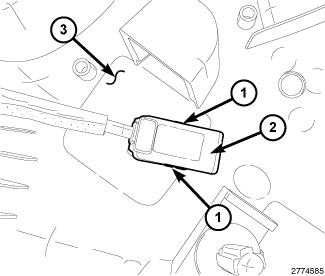

3. Remove the microphone (2) from the trim panel (3) by carefully pushing in the tabs (1) on the microphone and push microphone through the trim panel hole.
