Bracket

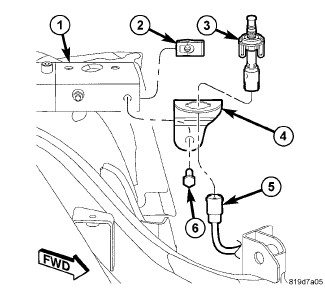

BRACKET





1. Remove the hood ajar switch (3) from the mounting bracket (4). . Switch
2. Remove the screw (6) that secures the hood ajar switch bracket to the front of the left front load beam (1) in the engine compartment.
3. Remove the hood ajar switch bracket from the load beam.
