Navigation Antenna - Removal

REMOVAL





1. Disconnect the battery negative cable.
2. Remove the center bezel.
3. Remove the radio. Radio - Removal.

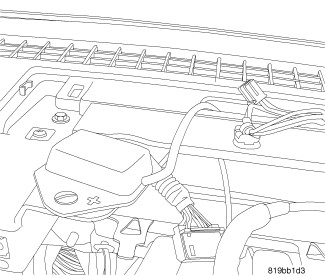

4. Remove the push pins securing the GPS antenna.
5. Remove the GPS antenna.
