Lamp, Cargo: Removal: Bulb
- Disconnect and isolate the battery negative cable.

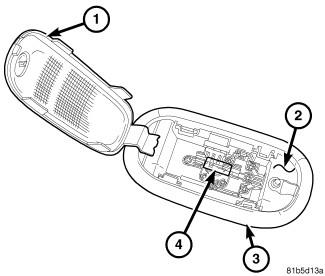

- Insert the tip of a small flat-bladed screwdriver into the notch on the right side of the cargo lamp between the lens (1) and the lamp housing (2).
- Gently pry the notched edge of the lens downward until it unsnaps from the housing.
- While holding the lamp housing bezel (3) flush with the sport bar trim, swing the notched end of the lens downward far enough to access the bulb (4).NOTE:
If the lamp housing is lowered from the mounting hole, the lamp MUST be reinstalled as per the installation procedure. Refer to LAMP, CARGO, INSTALLATION .
- Carefully unsnap the bulb from the two bulb holders within the lamp housing.
