Seat, Rear: Removal: Removal

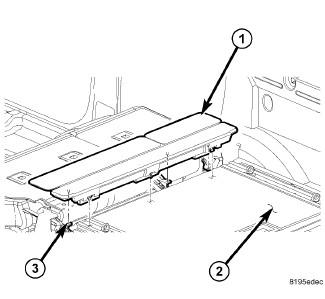

Fig 1: Load Floor Panel, Load Floor & Rear Seat Bracket

Courtesy of CHRYSLER LLC

Disconnect the negative battery cable.
Position the rear seats so that the seats are in a flat position.
Remove the load floor panel (1) from the load floor (2) and the rear seat bracket (3).

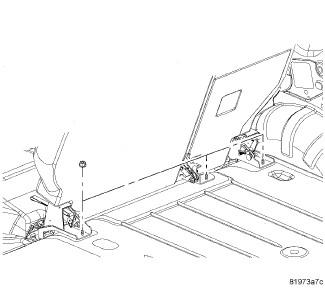

Fig 2: Removing/Installing Seat Bracket Nuts
Courtesy of CHRYSLER LLC
Remove the three seat bracket nuts.

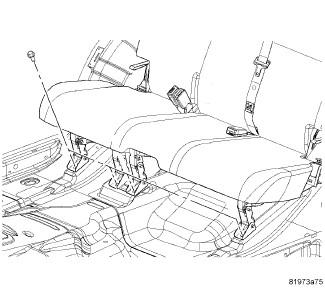

Fig 3: Removing/Installing Bolts From Cushion Legs
Courtesy of CHRYSLER LLC
Remove the four bolts from the cushion legs.

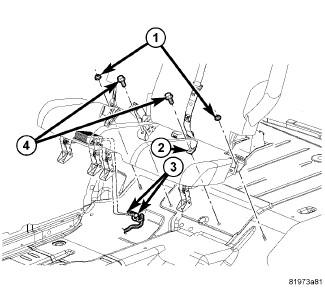

Fig 4: Seat Bracket Nuts, Center Seat Belt, Seat Module Electrical Connector & Center Bracket Bolts
Courtesy of CHRYSLER LLC

NOTE:
Lift the bottom cushion and prop up to access the fasteners.
Remove the two seat bracket nuts (1) from the seat brackets.
Remove the center bracket bolts (4) and the center seat belt (2).
Remove the electrical connector (3) from the seat module.
Fold down the seat backs and remove from the vehicle.
