Manual Operation

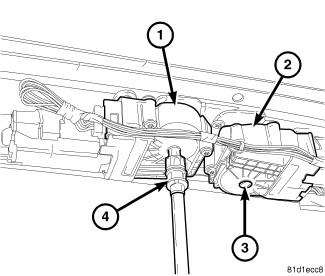

Fig 1: Motor Manual Open

Courtesy of CHRYSLER LLC

1 - REAR DRIVE MOTOR

2 - FRONT DRIVE MOTOR

3 - DRIVE AXLE LOCATION

4 - 6 mm HEX SOCKET

Remove the rear dome light. Refer to LAMP, Dome, Removal .
Disconnect the grey module electrical connector.
Locate the motor drive axle hole (3), using a 6 mm hex socket or equivalent (4), open or close the desired drive assembly as required.
