Assembly, Drive, Rear: Removal: Removal

Fig 1: Front Motor, Screws And Electrical Connector
GC0086469Courtesy of CHRYSLER LLC
  1. Remove the front drive assembly. Refer to ASSEMBLY, Drive, Front, Removal .
  2. Remove the three screws (2) and separate the rear motor (3) from the roof system.
    NOTE:

    Discard the screws (2) and replace with service screws and washers.

  3. Disconnect the electrical connector (1) and remove the motor.
    Fig 2: Nylon Pins, Cover Assembly And Drive Assembly Cap
    GC0086583Courtesy of CHRYSLER LLC
  4. Manually position the rear bow and drive assembly (1) forward about 300 mm (12 inches).
    CAUTION:

    When moving the drive assemblies without the motors attached make sure that the assemblies are moved straight back.

  5. Separate the headliner hook and loop strip (3) and expose the drive mechanism.
  6. Remove the five screws (2) and separate the cover assembly from the drive (1).

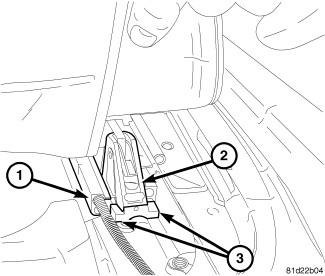

    Fig 3: Wind Deflector, Tab And The Rail
    GC0086590Courtesy of CHRYSLER LLC
  7. Slide the cover and slider assembly (2) out of the front of the tracks and roll up backwards as you go.
  8. Remove the cover assembly from the vehicle.
  9. Slide drive assembly forward and remove.
  10. Pull cables out slightly.
