Bulb - Second Row
NOTE:
The second row reading lamps are integral to the grab handle in the headliner on the inner roof side rail over each outboard rear seating position. Refer to Group 23 - Body/Interior for the handle service procedure.
- Disconnect and isolate the battery negative cable.
- Using a small thin-bladed screwdriver, gently pry the upper corner at the forward end (2) of the reading lamp lens (1) away from the grab handle far enough to unsnap it from the lamp housing.
- Pull the front end of the lens outward far enough to disengage the large tab at the rear of the lens from the lamp housing.

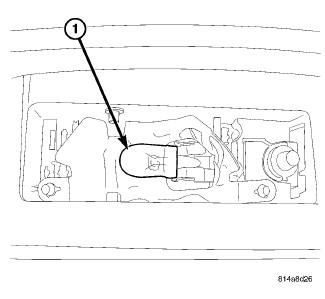

- Pull the base of the bulb (1) straight out of the bulb holder within the lamp housing.
