Bulb - Front

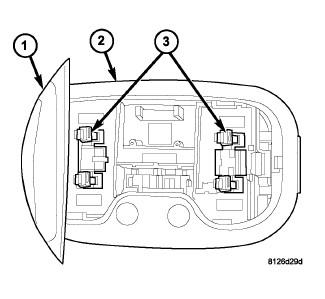

Fig 1: Locating Dome Lamp Bulb
GC0085973Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the battery negative cable.
  2. Remove the front dome lamp from the headliner. Refer to LAMP, Dome, Removal .
  3. With the lamp lens (1) in the open position, carefully unsnap the bulb (3) from the two bulb holders within the front dome lamp housing (2).
