CONNECTOR, Trailer Tow: Removal: Removal

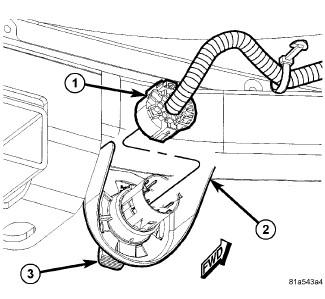

Fig 1: Identifying Body Wire Harness Connector, Bracket & Trailer Tow Connector

Courtesy of CHRYSLER LLC

1. Disconnect and isolate the battery negative cable.
2. Reach underneath and behind the bracket (2) for the trailer tow connector (3) to access and disconnect the body wire harness connector (1).

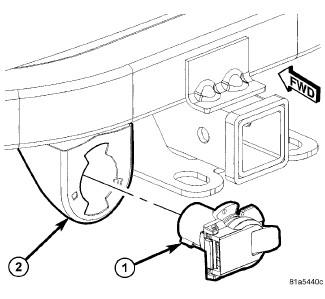

   Fig 2: Identifying Trailer Tow Connector & Bracket

   Courtesy of CHRYSLER LLC
3. Grasp the trailer tow connector (1) firmly from the face of the bracket (2) and rotate it 90 degrees counterclockwise to unlock it.
4. Pull the trailer tow connector straight rearward to remove it from the hitch receiver bracket.
