Stationary Glass: Windshield: Removal: Removal

Before proceeding with the following repair procedure, review all warnings and cautions. Refer to WINDSHIELD, Warning .
Remove inside rear view mirror. Refer to MIRROR, Rearview, Removal .
Remove the wiper arms. Refer to ARM, Wiper, Removal .

Fig 1: Rear Wheelhouse Splash Shield
Courtesy of CHRYSLER LLC

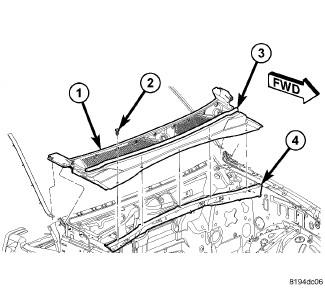

Remove the hood seal (3).
Use a trim stick (special tool #C-4755, Trim Stick) or equivalent, separate the cover assembly from the a-pillar.
Remove the four push pins (2) and remove the cowl grille (1) from the body (4).

Fig 2: Roof Rack Assembly
Courtesy of CHRYSLER LLC

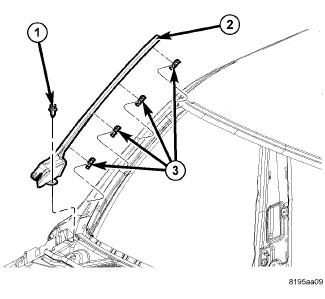

Using a trim stick (special tool #C-4755, Trim Stick) or equivalent, remove the push pin (1).
Remove the windshield A-pillar molding (2) and clips (3) from the windshield A-pillar.

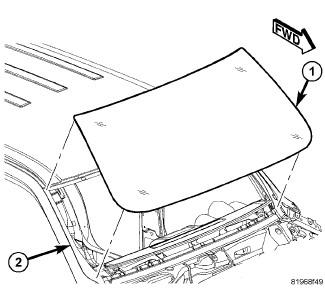

Fig 3: Removing/Installing Windshield
Courtesy of CHRYSLER LLC
Cut urethane bonding from around windshield using a suitable sharp cold knife. A pneumatic cutting device can be used if available.
Remove windshield from vehicle.
