Bezel, Instrument Panel, Center: Removal: Removal

Fig 1: Identifying Center Bezel

Courtesy of CHRYSLER LLC

Disconnect the negative battery cable.
CAUTION:
Use caution when pulling out the center bezel, damage may occur to the plastic clips or gear posts.
Using trim stick (special tool #C-4755, Trim Stick) or equivalent, carefully pry the center bezel (2) away from the instrument panel (1).

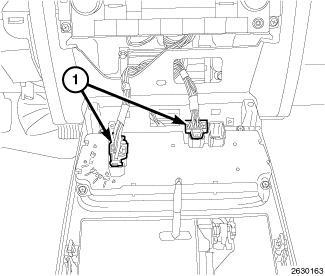

Fig 2: Identifying Electrical Connectors
Courtesy of CHRYSLER LLC
Disconnect the HVAC controller electrical connectors (1). Refer to CONTROL, A/C and Heater, Removal .
