Cover, Seat Cushion, Front: Assembly: Assembly

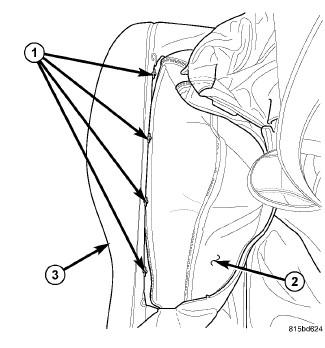

Fig 1: Seat Cushion Hog Rings

Courtesy of CHRYSLER LLC

1. Before proceeding with the following repair procedure, review all warnings and cautions. Refer to Seats, Warning .
2. Position the seat cushion cover (2) over the seat cushion foam (3) and attach new hog rings (1).

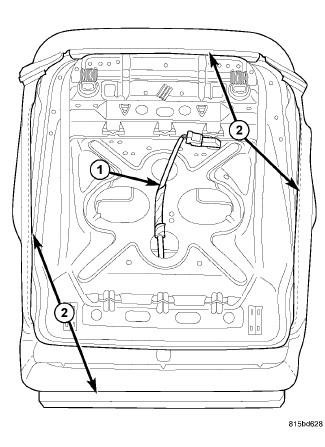

   Fig 2: Seat Cushion Cover J-Straps And Harness

   Courtesy of CHRYSLER LLC
3. Connect the seat cushion cover J-straps (2) to the seat pan.
