Body - Interior & Exterior: DECKLID/Hatch/Liftgate/Tailgate: Striker: Adjustments: Adjustments

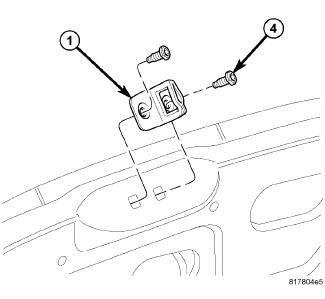

Fig 1: Liftgate Striker Assembly

Courtesy of CHRYSLER LLC

1. Using a grease pencil or equivalent, mark the position of the striker (1) to aid in adjustment.
2. Loosen the striker bolts (4).
3. Change the striker position to adjust the lower liftgate gap and flush measurement. Refer to GAP AND FLUSH DIMENSIONS .
4. Tighten the bolts to 23 N.m (17 ft. lbs.).
