Body - Interior & Exterior: DECKLID/Hatch/Liftgate/Tailgate: Liftgate: Removal: Removal

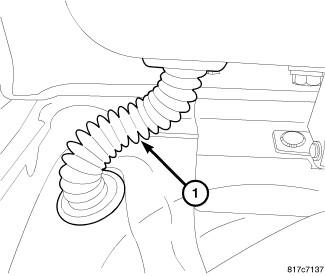

Fig 1: Liftgate Harness

Courtesy of CHRYSLER LLC

1. Open liftgate.
2. Disconnect washer hose.
3. Disconnect liftgate harness (1).
4. Disconnect cable from handle.
5. Support the liftgate and disconnect the liftgate prop cylinders, Refer to PROP, Gas, Removal .

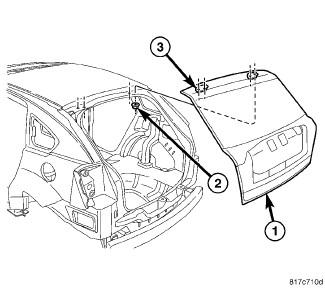

   Fig 2: Liftgate Hinge

   Courtesy of CHRYSLER LLC
6. Remove fasteners (2) attaching liftgate (1) to liftgate hinge (3).
