Cable, Hood Release: Removal: Removal

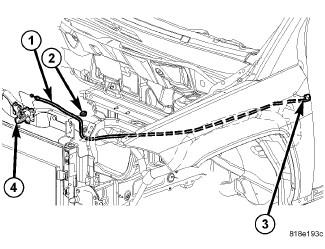

Fig 1: Latch Cable

Courtesy of CHRYSLER LLC

Disconnect the latch cable (1) from the latch (3).
Separate the cable (2) from the latch (3).

Fig 2: Release Cable
Courtesy of CHRYSLER LLC
Release the push pin fasteners (2).

Fig 3: Hood Release Lever
Courtesy of CHRYSLER LLC
Remove the cowl trim panel. Refer to PANEL, Cowl Trim, Side, Removal .
Remove the screws (2) and separate the handle (3) from the cowl.
Remove the cable from the cowl panel from the inside of the car.
