Cylinder, Lock: Removal: Removal

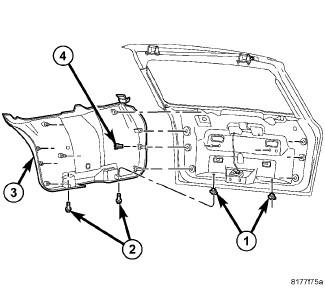

Fig 1: Lower Liftgate Trim

Courtesy of CHRYSLER LLC

NOTE:

Compass shown in illustration, Patriot similar.

Remove the lower liftgate trim panel (3). Refer to PANEL, Trim, Removal .

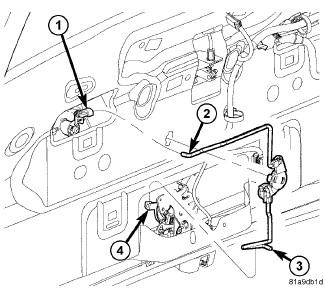

Fig 2: Clip & Lock Rod
Courtesy of CHRYSLER LLC
Release the clip (1) and separate the lock rod (2).

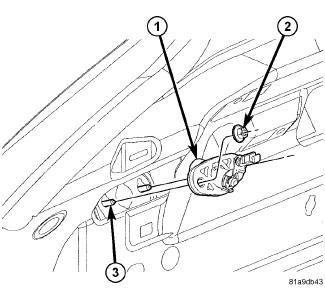

Fig 3: Two Nuts & Lock Cylinder
Courtesy of CHRYSLER LLC
Remove the two nuts (2) and remove the lock cylinder (1).
