Seat Back, Rear: Removal: Removal

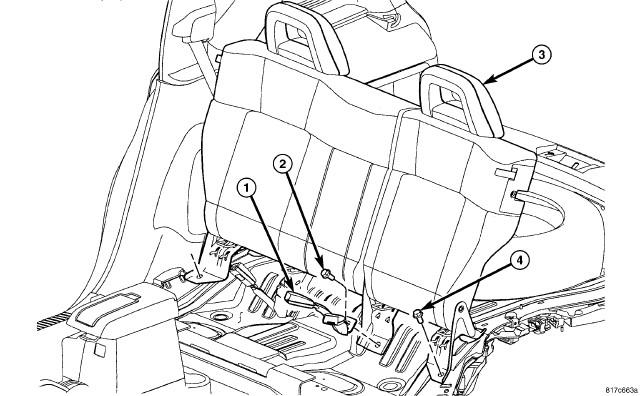

Fig 1: Rear Seat Back 1
GC0084652Courtesy of CHRYSLER LLC
  1. Remove the seat cushion. Refer to COVER, Seat Cushion, Front, Removal  and COVER, Seat Cushion, Rear, Removal .
  2. Remove the belt buckle bolt (2) and the buckle (1).
  3. Remove the floor bracket or recliner bolts (4).

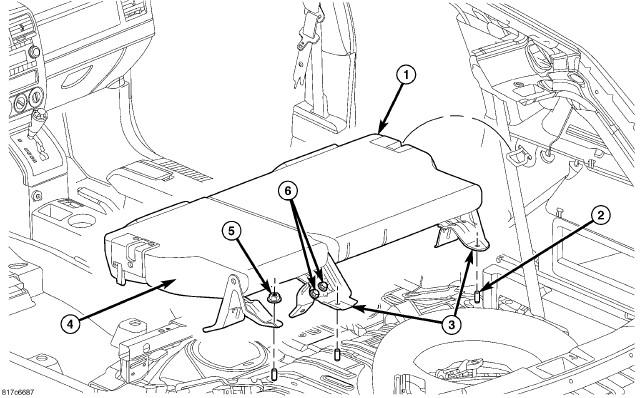

    Fig 2: Rear Seat Back 2
    GC0084653Courtesy of CHRYSLER LLC
  4. Fold the seats forward.
  5. Remove the nut (5) and bolts (6) and remove the 40% seat back (4).
  6. Remove the nuts from the studs (2) and remove the 60% seat back.
