Stationary Glass: Windshield: Removal: Removal

  1. Before proceeding with the following repair procedure, review all warnings and cautions. Refer to Stationary Glass, Warning .
  2. Remove rear view mirror. Refer to MIRROR, Rearview, Removal .
  3. Remove the cowl grille. Refer to COVER, Cowl Panel, Removal .

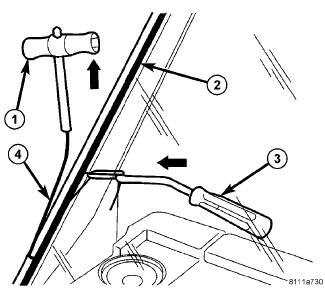

    Fig 1: Adhesive Separation
    GC0085198Courtesy of CHRYSLER LLC
    1 - T-HANDLE
    2 - WINDSHIELD ADHESIVE
    3 - COUNTER SUPPORT
    4 - CUTTING WIRE
  4. Using a windshield cut-out wire separate the adhesive.
  5. Carefully remove windshield.
