Glove Box, Instrument Panel: Removal: Removal

NOTE:

ND vehicle line shown in illustration, MK vehicle line similar.

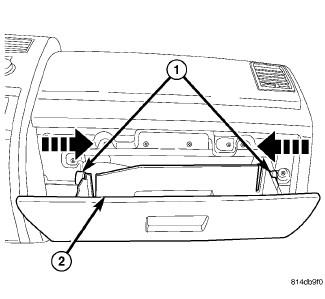

Fig 1: Identifying Glove Box Stop Tabs
GC0083098Courtesy of CHRYSLER LLC
  1. Open the glove box and squeeze the stop tabs inward.

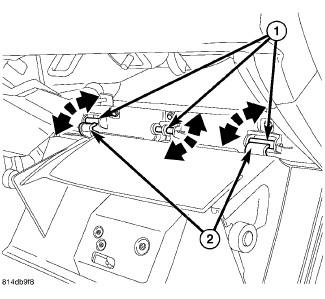

    Fig 2: Identifying Glove Box Assembly
    GC0083099Courtesy of CHRYSLER LLC
  2. Lower the glove box and release the hinges (1) using a twisting motion and remove the glove box.
