Rear

REMOVAL

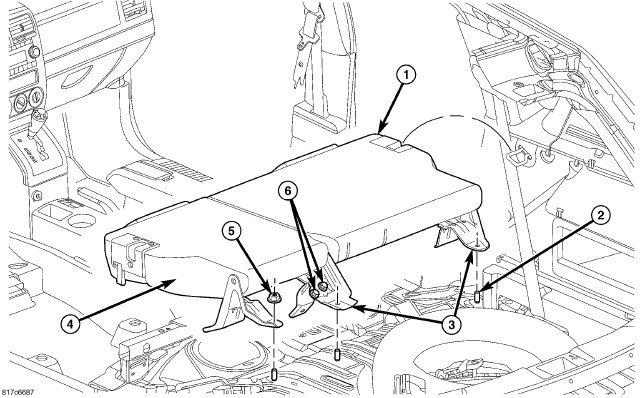

1. Remove the seat cushion Seat Cushion Cover - Removal

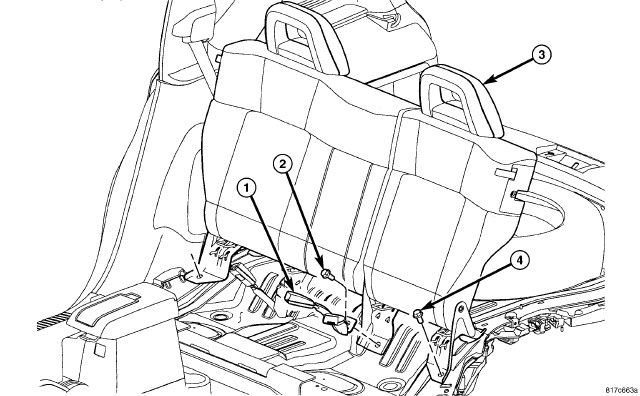

2. Remove the belt buckle bolt (2) and the buckle (1).
3. Remove the floor bracket or recliner bolts (4).





4. Fold the seats forward.
5. Remove the nut (5) and bolts (6) and remove the 40% seat back (4).
6. Remove the nuts from the studs (2) and remove the 60% seat back.
