Rear

DISASSEMBLY





1. Remove the screws (1) and remove the latch bezel (2).





2. Remove the bolts (2) and remove the latch (1).





3. Remove the screws (1) and remove the tether trim bezels (2).





4. Remove the headrest.





5. Separate the zip strips (1 and 2).





6. Remove the push pin fasteners (3).
7. Separate the inner cover (2) from the hooks (1).





8. Unzip the cover (1).





9. Remove the foam insert (2) from the seat back assembly (1).










10. Separate the seat cover (3) from the foam cushion (1) and cut off all hog rings (2) attaching the cover to the foam.

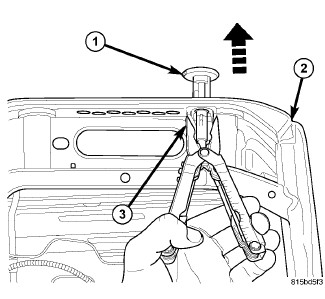

11. Squeeze the locking tab (3) and remove the headrest sleeves (1).
12. Remove the seat back cover and cushion.
