Rear

ASSEMBLY










1. Position the seat back cushion on the frame and position the cover over the cushion.

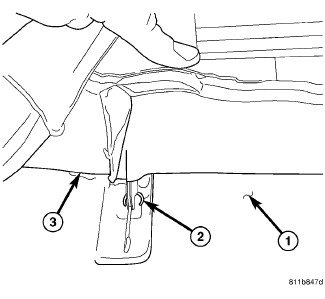

2. Attach the seat cover (3) to the seat back cushion (1) and install new hog rings (2) as required.





3. Position the foam insert (2) back at the base of the seat back assembly (1).

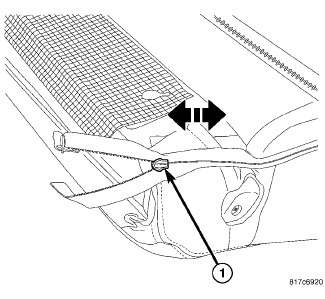

4. Zip the cover back over the frame.

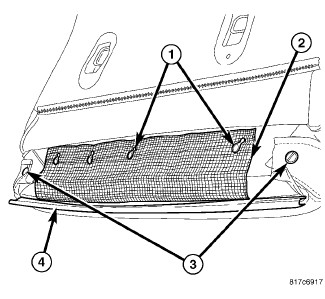

5. Install the push pin fasteners (3).

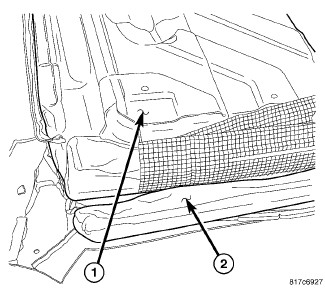

6. Position the inner cover (2) over the frame hooks (1).

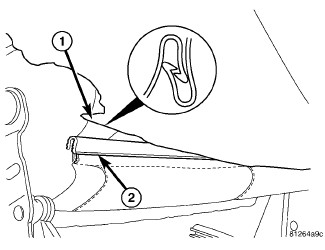

7. Fasten the upper (1) and lower (2) zip strips at the bottom of the seat back.

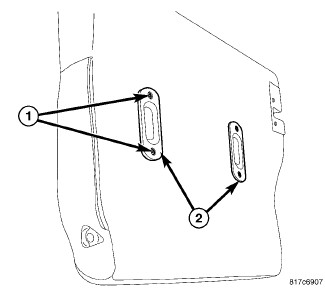

8. Install the child tether bezels (2) and install the screws (1).

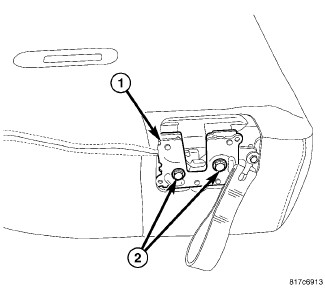

9. Install the latch (1) and install the bolts (2).
10. Tighten the bolts to 28 Nm (21 ft. lbs.).

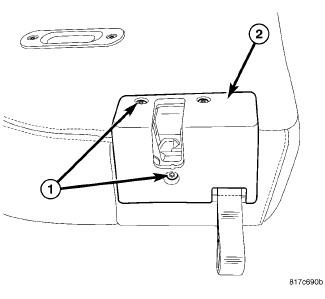

11. Install the latch bezel (2) and install the screws (1).





12. Install the headrest sleeves (2), if equipped.





13. Press the headrest sleeve release buttons and install the headrest, if equipped.
14. Install the seat back Seat Back - Installation.
