Seat Back: Description and Operation






DESCRIPTION

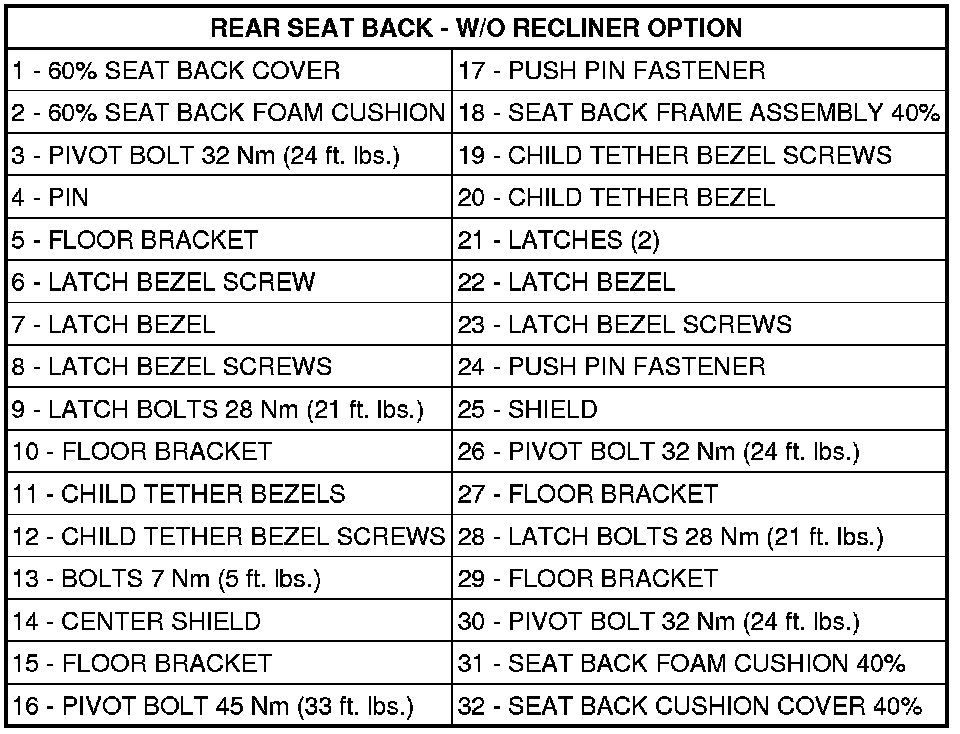

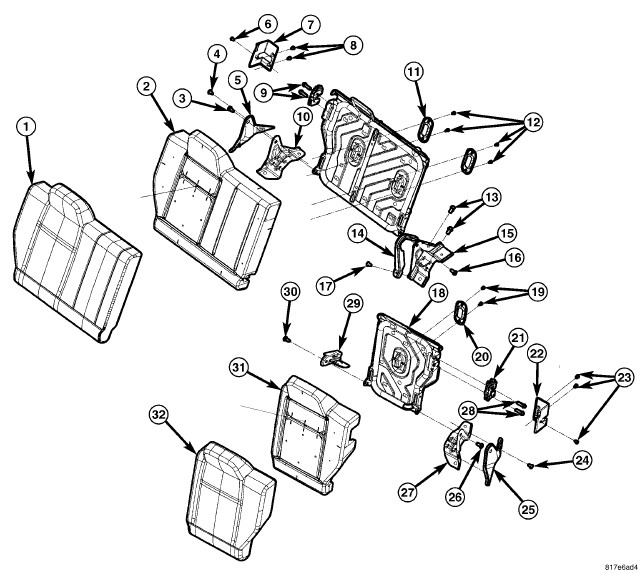

REAR SEAT BACK - W/O RECLINER OPTION

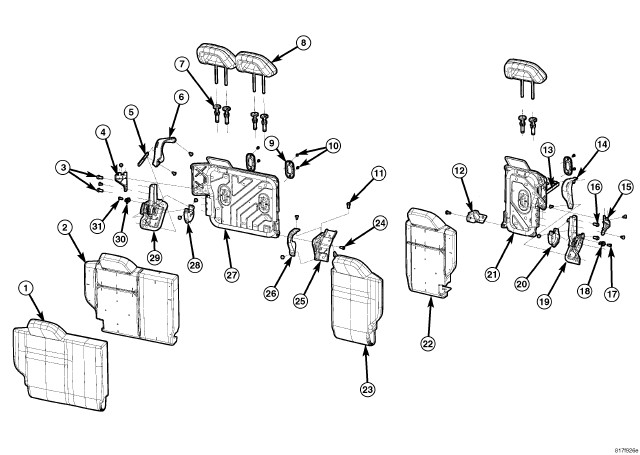

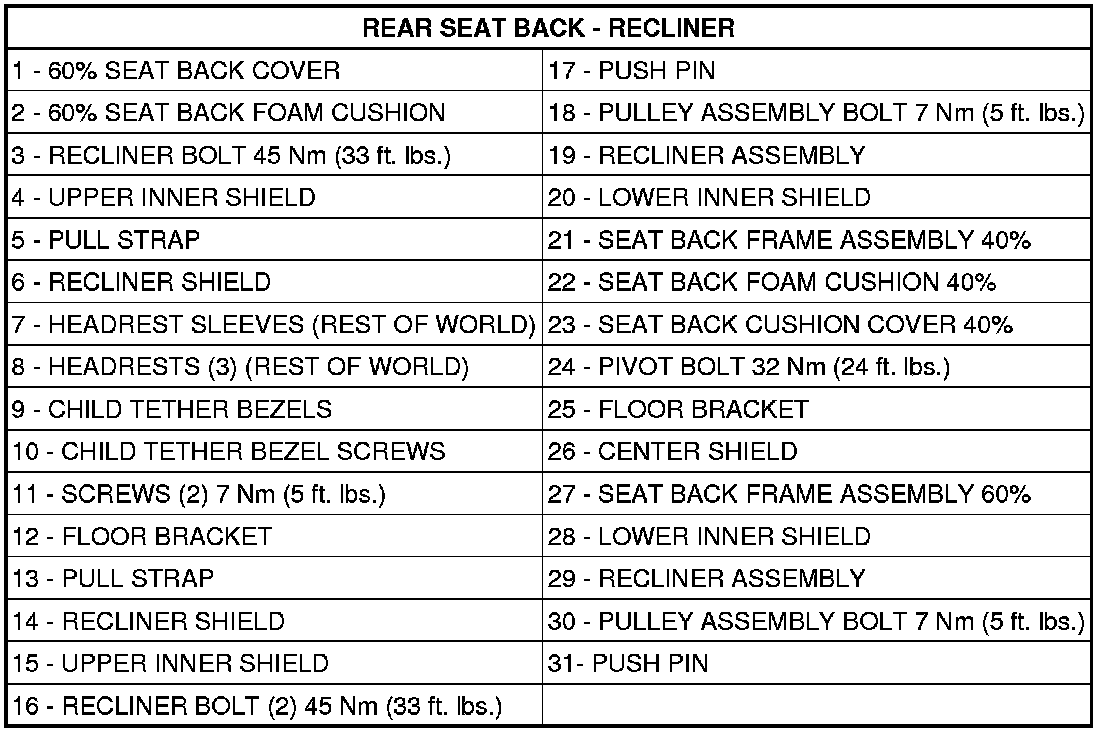

REAR SEAT BACK - RECLINER
