Shifter Housing - Installation

INSTALLATION

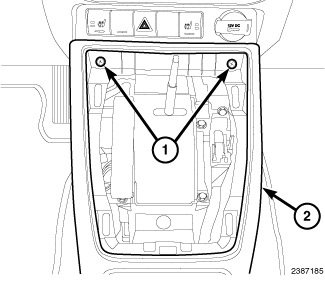

1. Position the shifter housing (2) in the vehicle and install the upper screws (1).

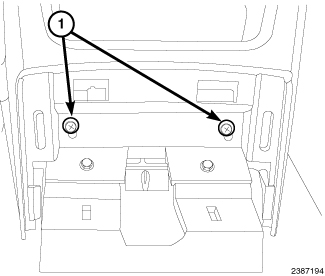

2. Install the shifter housing lower screws (1).





3. Install the shift bezels (2), Shifter Bezel - Installation.

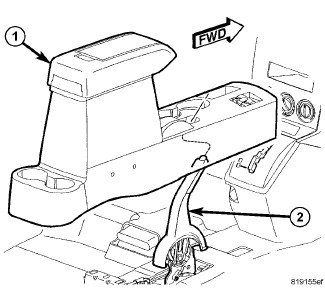

4. Install the floor console (1), Floor Console - Installation.
