Shifter Bezel - Removal

REMOVAL

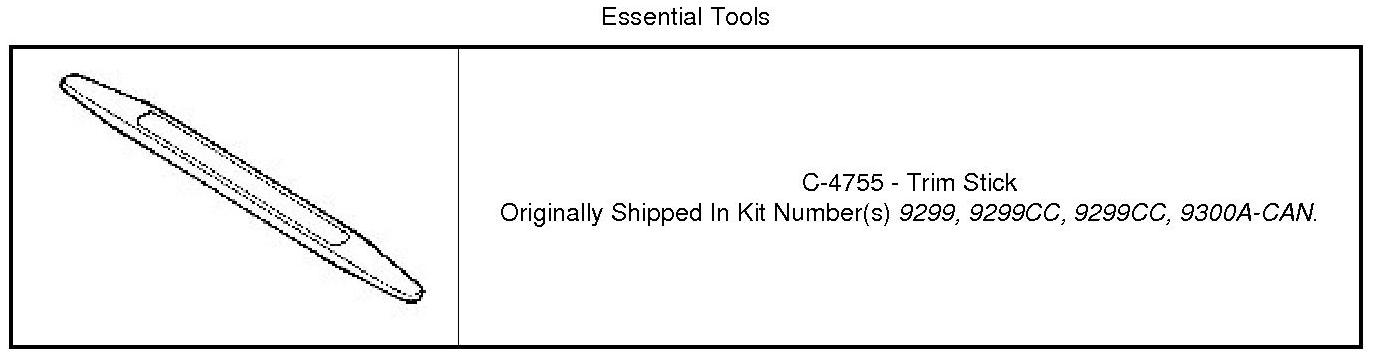

Special Tools:






Automatic

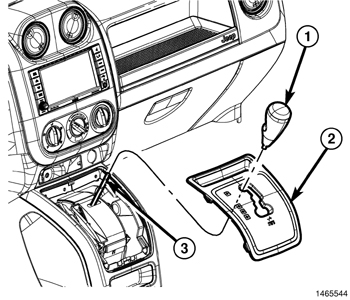

1. Pull up on shifter knob (1) and remove from the shifter shaft (3).
2. Using trim stick or equivalent, separate the bezel (2) from the shifter console.

Manual

1. Pull up on shifter knob and remove from the shifter shaft.
2. Using trim stick or equivalent, pry up on the shifter boot and separate from the bezel.
3. Using trim stick or equivalent, separate the bezel from the shifter housing.
