C-Pillar Trim Panel - Removal

REMOVAL

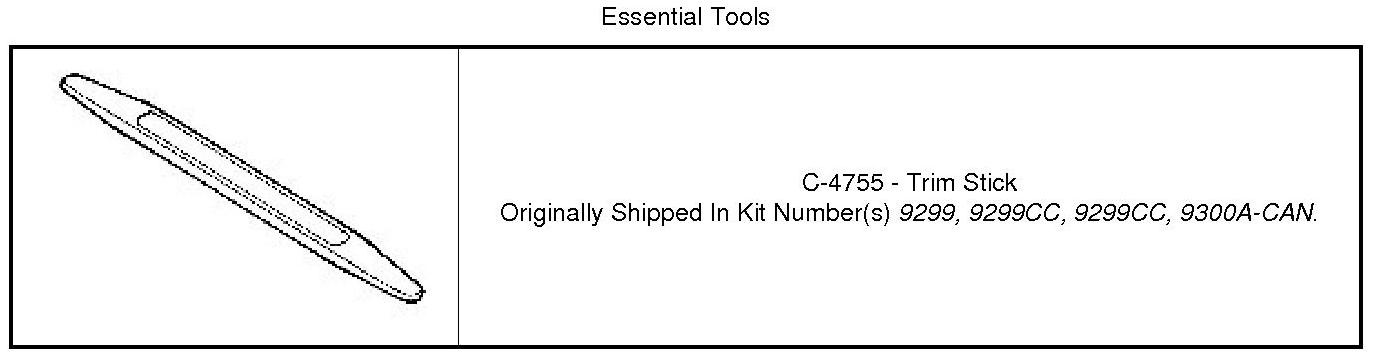

Special Tools:






Compass and Patriot





1. Remove the bolts (2) and remove the rear seat cushion (3), Seat Cushion Cover - Removal.





2. Remove the D-pillar trim (1), D-Pillar Trim Panel - Removal.

Compass





1. Remove the seat belt anchor bolt (4).
2. Using a trim stick or equivalent, separate the retaining clips (3) and remove the C-pillar trim (1).
3. Pull the seat belt through the hole in the trim.

Patriot





1. Remove the seat belt anchor bolt (5).
2. Using a trim stick or equivalent, separate the retaining clips (3) and remove the C-pillar trim (2).
3. Pull the seat belt (4) through the hole in the trim.
