C-Pillar Trim Panel - Installation

INSTALLATION

Compass





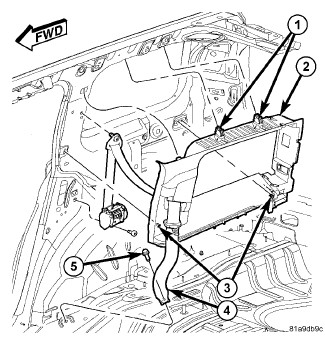

1. Pull the seat belt through the hole in the trim.
2. Position the trim tabs (2) into the body and seat the trim retaining clips (3) fully.
3. Install and tighten the screw (4) that secures the lower anchor to the rear floor panel. Tighten the screw to 40 Nm (30 ft. lbs.).

Patriot





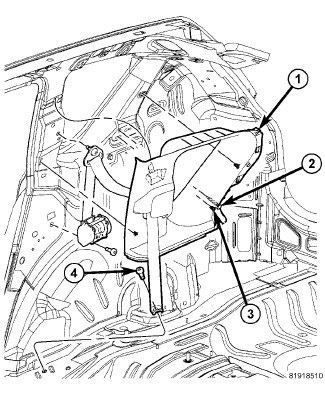

1. Pull the seat belt (4) through the hole in the trim.
2. Position the trim tabs (1) into the body and seat the trim retaining clips (3) fully.
3. Install and tighten the screw (5) that secures the lower anchor to the rear floor panel. Tighten the screw to 40 Nm (30 ft. lbs.).

Compass and Patriot

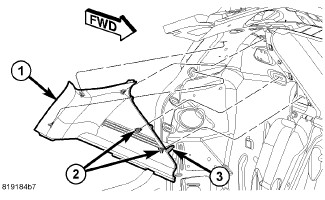

1. Install the D-pillar trim (1), D-Pillar Trim Panel - Installation.





2. Install the rear seat cushion (3), Seat Cushion Cover - Installation.
