Cowl Trim Panel - Installation

INSTALLATION

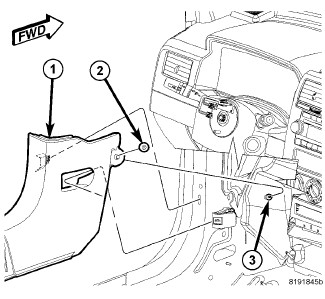

1. Position the trim (1) over the hood release, if required, and seat the retaining clip fully.
2. Install the fastener (2).





3. Position the door scuff (3) into back into place over the scuff (1) and seat the retaining clips fully.
