SENSOR, Ambient Temperature: Installation: Installation

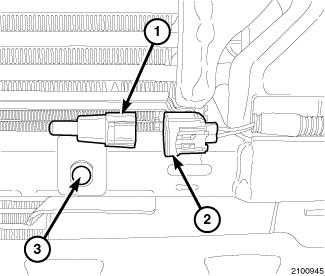

Fig 1: Remove/Install Ambient Temperature Sensor

Courtesy of CHRYSLER LLC

1. Position the ambient temperature sensor in the vehicle.
2. Install the retainer (3) that secures the ambient temperature sensor to the lower cross brace.
3. Connect the wire harness connector (2) to the ambient temperature sensor (1).
4. Install the grille assembly. Refer to Body/Exterior/GRILLE - Installation .
5. Connect the battery negative cable.
