HANDLE, Grab: Removal: Removal

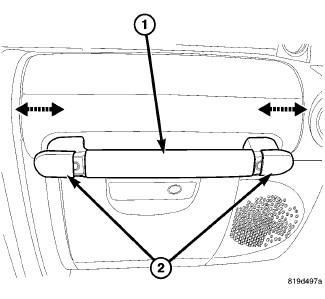

Fig 1: GRAB HANDLE AND TRIM CAPS
GC0131427Courtesy of CHRYSLER LLC
  1. Using a trim stick C-4755 or equivalent, slide the grab handle trim caps (2) off the trim handle (1).

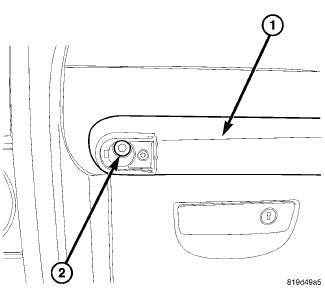

    Fig 2: GRAB HANDLE RETAINERS
    GC0131428Courtesy of CHRYSLER LLC
  2. Remove the bolts (2) and remove the grab handle (1).
