HANDLE, Front Recliner: Removal: Removal

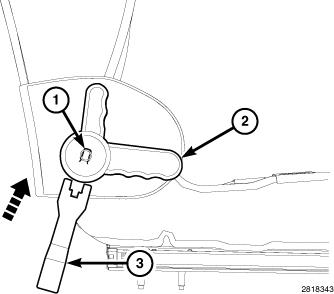

Fig 1: Clip & Recliner Handle
GC0139261Courtesy of CHRYSLER LLC
NOTE: EZ Entry handle shown, normal recliner handle similar.
  1. Using a door handle clip tool (3) or equivalent, release the clip (1) using the clip tool (3).
  2. Remove recliner handle (2).
