Diagnostic Test

CHECK FOR AN ACTIVE DTC
1. Turn the ignition on.
2. With the scan tool, record and erase DTCs.
3. Wait 30 seconds.
4. With the scan tool, read DTCs.
  Does the scan tool display this DTC as active?

  Yes
  - Go to step 2
  No
  - The condition that caused this code to set is not present at this time. Check for an intermittent condition by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken wires. Also inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated terminals.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure
(D506) LIN BUS CIRCUIT

Fig 1: Measuring Voltage Of LIN BUS Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Switch Bank Module harness connector.
3. Turn the ignition on.
4. Measure the voltage of the (D506) LIN BUS circuit.
  Is the voltage above 5 volts?

  Yes
  - Go to step 4
  No
  - Go to step 3
(D506) LIN BUS CIRCUIT OPEN

Fig 2: Measuring Resistance Of LIN BUS Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Cluster C2 harness connector.
3. Measure the resistance of the (D506) LIN BUS circuit.
  Is the resistance below 10K ohms?

  Yes
  - Replace the Cluster in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure
  No
  - Repair the (D506) LIN BUS circuit for an open.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure
(A418)/(A909) FUSED B+ CIRCUIT OPEN

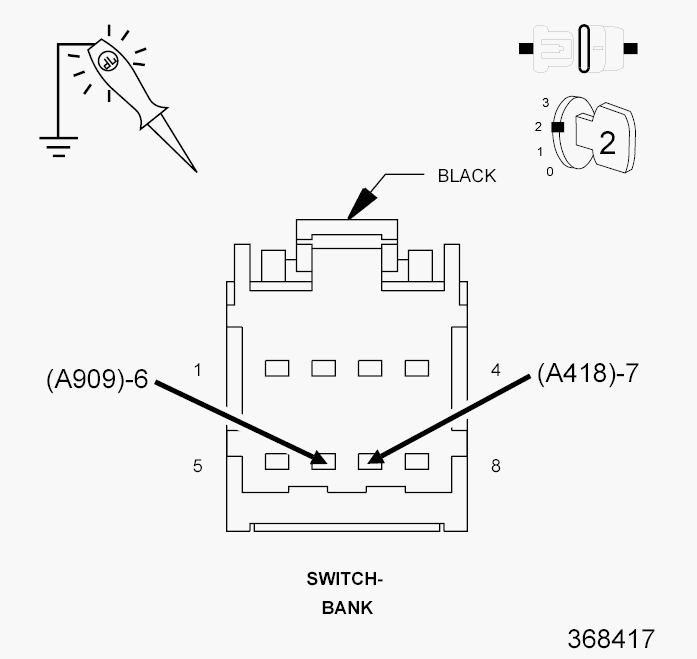

Fig 3: Checking Fused B+ Circuit Using 12-Volt Test Light Connected To Ground
Courtesy of CHRYSLER LLC
1. Turn the ignition on.
2. Using a 12-volt test light connected to ground, check the (A418)/(A909) Fused B+ circuit at the Switch Bank Module harness connector.
  Does the test light illuminate brightly?

  Yes
  - Go to step 5
  No
  - Repair the (A418)/(A909) Fused B+ circuit for an open.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure
(Z911) GROUND CIRCUIT OPEN

Fig 4: Checking Ground Circuit Using 12-Volt Test Light Connected To 12 Volts
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Using a 12-volt test light connected to 12-volts, check the (Z911) Ground circuit at the Switch Bank Module harness connector.
  Does the test light illuminate brightly?

  Yes
  - Replace the Switch Bank Module in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure
  No
  - Repair the (Z911) ground circuit for an open.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure
