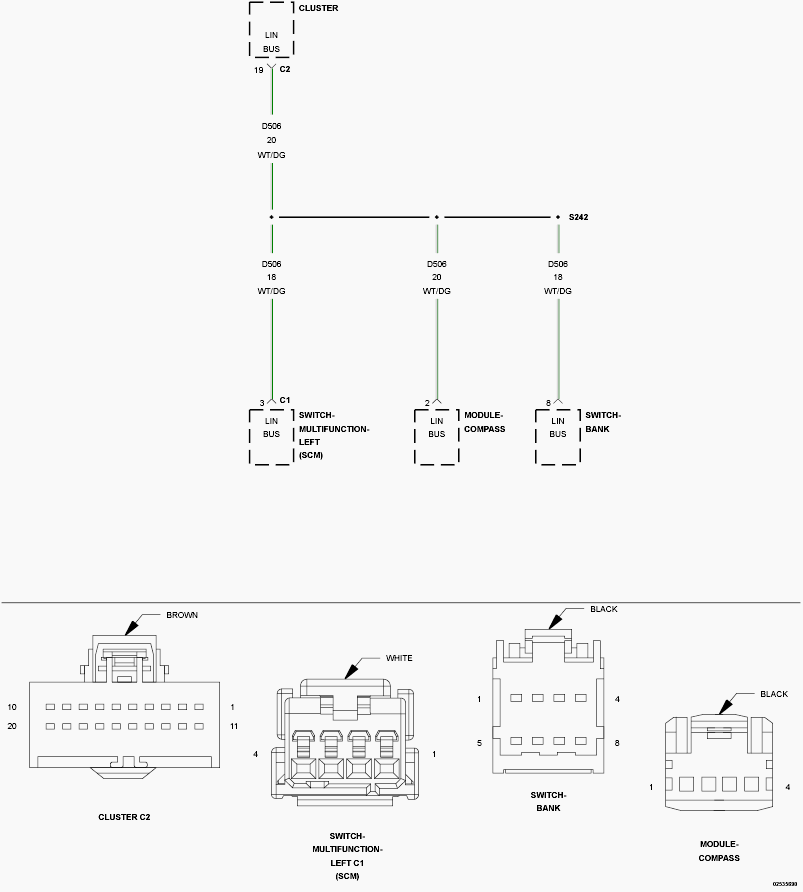

Home >> Jeep >> 2010 >> Wrangler Islander, Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Exterior Lights >> (Cabin Compartment Node (CCN) - Electrical Diagnostics) >> DTC Troubleshooting >> DTC U1008: Lin 1 Bus >> Circuit Schematic
