Diagnostic Test

CHECK FOR AN ACTIVE DTC
1. Turn the ignition on.
2. With the scan tool, record and erase DTCs.
3. Activate the Panel Illumination.
4. Wait 30 seconds.
5. With the scan tool, read DTCs.
  Does the scan tool display this DTC as active?

  Yes
  - Go to step 2
  No
  - The condition that caused this code to set is not present at this time. Check for an intermittent condition by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken wires. Also inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated terminals.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
CHECK EACH NON-FUNCTIONING COMPONENT FOR AN INTERNAL SHORT TO GROUND

Fig 1: Checking Non-Functioning Component Harness Connector
Courtesy of CHRYSLER LLC

NOTE: Using the wiring diagram as a guide disconnect each non-functioning component one at a time while checking for the DTC to become stored. Repeat these steps for each component.
1. Turn the ignition off.
2. Disconnect the non-functioning component harness connector.
3. Turn the ignition on.
4. Activate the Panel Illumination.
5. With the scan tool, read DTCs.
  Is the DTC still active?

  Yes
  - Go to step 3
  No
  - Replace the non-functioning component that when disconnected caused the DTC to become stored in accordance with the service information.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
CHECK THE (E12) PANEL LAMPS DRIVER CIRCUIT FOR A SHORT TO GROUND

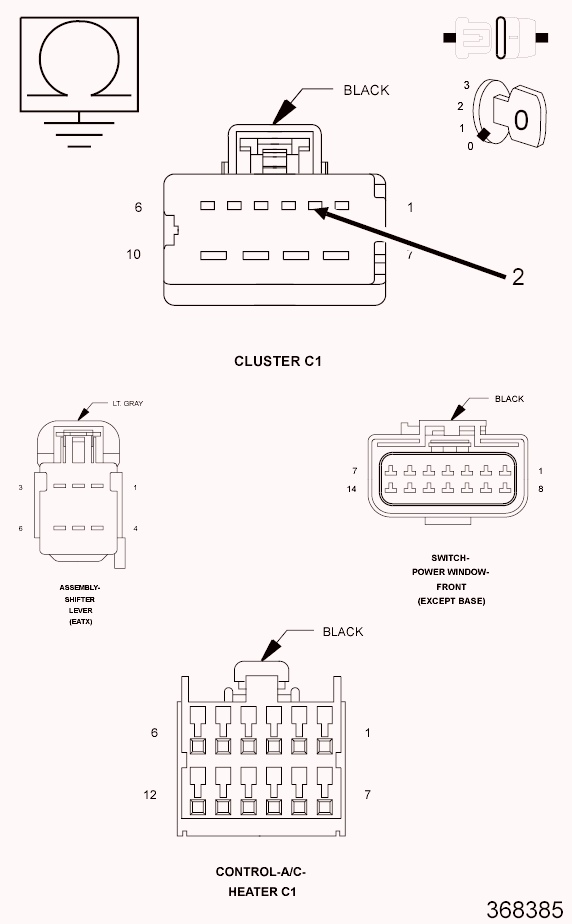

Fig 2: Measuring Resistance To Ground On Panel Lamps Driver Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Instrument Cluster C1 harness connector.
3. With all (E12) Panel Lamps Driver circuit components disconnected, measure the resistance to ground on the (E12) Panel Lamps Driver Circuit from the Instrument Cluster C1 harness connector.
  Is the resistance less than 10K Ohms?

  Yes
  - Repair the (E12) Panel Lamps Driver circuit for a short to ground.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
  No
  - Replace the Cluster in accordance with the service information.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
