Upper Fold Flat Shield

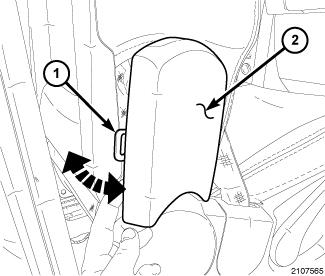

Fig 1: Removing/Installing Upper Fold Flat Shield
GC0101041Courtesy of CHRYSLER LLC
  1. Using a flat bladed trim tool or equivalent, separate the retaining clip (1) from the seat back recliner frame.

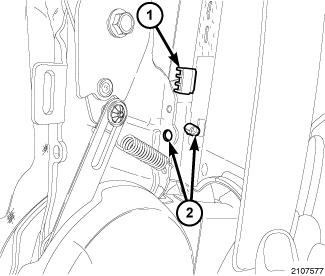

    Fig 2: Side Hook & Alignment Pin
    GC0101042Courtesy of CHRYSLER LLC
  2. Slide the shield forward until the side hook (1) and alignment pin (2) are released and remove the side shield.
