Manual Seats

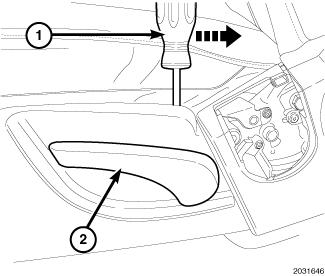

Fig 1: Inserting Small Flat Bladed Tool Between Seat Cushion And Side Cover To Release Recliner Handle

Courtesy of CHRYSLER LLC

Insert a small flat bladed tool (1) or equivalent, between the seat cushion and the side cover to release the recliner handle (2).

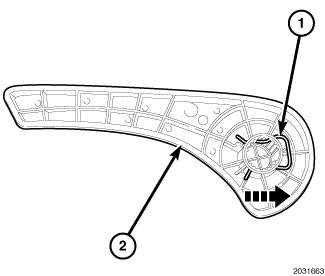

Fig 2: Sliding Retaining Clip To Rear Of Vehicle And Removing Handle From Recliner Shaft
Courtesy of CHRYSLER LLC
Slide the retaining clip (1) to the rear of the vehicle and remove the handle (2) from the recliner shaft.

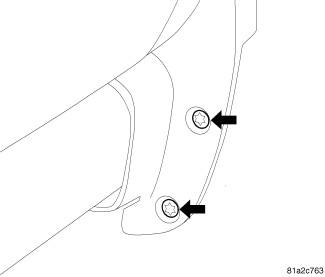

Fig 3: Rear Seat Screws
Courtesy of CHRYSLER LLC
Remove the two screws from the rear of the side shield.

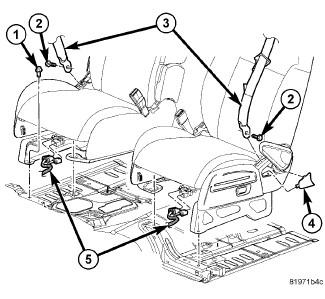

Fig 4: Front Bolts, Seat Belts, Bolts, Side Shield & Electrical Connectors
Courtesy of CHRYSLER LLC
Remove the seat belt anchor cover (4).
Remove the seat belt anchor bolt (2) and separate the belt (3) from the seat.

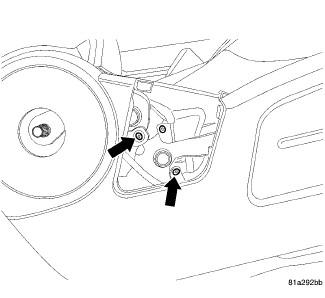

Fig 5: Seat Belt Anchor Cavity Screws
Courtesy of CHRYSLER LLC
Remove the two screws from the seat belt anchor cavity.

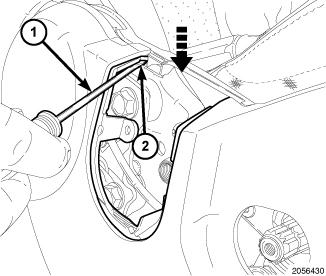

Fig 6: Using Small Flat Bladed Tool To Release Arrow Clips On Either Side Of Anchor Cavity
Courtesy of CHRYSLER LLC

CAUTION: Use care not to break the inner side shield hoop. If the hoop breaks, the inner side shield must be replaced to ensure retention once the anchor cover is re-installed.
Using a small flat bladed tool (1) or equivalent, release the arrow clips on either side of the anchor cavity by pressing down on the lower edge of the inner side shield hoop (2) and pulling carefully on the side shield.

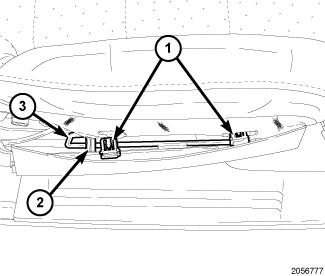

Fig 7: Upper Clips, Rear Support Hook & Support Wire
Courtesy of CHRYSLER LLC

CAUTION: DO NOT attempt to separate the clips from the side shield during removal or damage to the shield will result.

NOTE: The clips may be destroyed during removal. Always replace with new clips.
Using a flat bladed trim tool or equivalent, separate the upper clips (1) from the seat cushion frame and release the rear support hook (2) from the support wire (3).

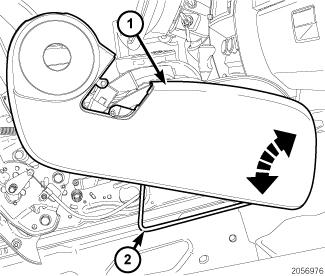

Fig 8: Removing/Installing Rear Shield Off/On Support Wire
Courtesy of CHRYSLER LLC
Lift the rear of the shield (1) toward the front of the vehicle off of the support wire (2).

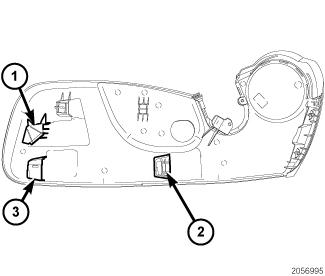

Fig 9: Corner Support & Front Support Hook
Courtesy of CHRYSLER LLC
Release the corner support (1) then the front support hook (3) from the support wire.
Using a small flat bladed tool, release the clip barbs securing the clips to the side shield tabs and discard the clips.
