PANEL, Trim, Liftgate: Removal: Removal

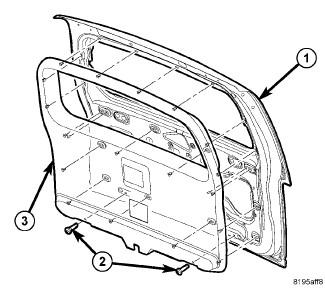

Fig 1: Lift Gate, Bolts & Lower Trim Panel

Courtesy of CHRYSLER LLC

Remove two bolts (2) from the lower trim panel (3).
Using a trim stick C-4755 or equivalent, release the fasteners at all of the locations around the trim panel (3).
Lift the trim panel (3) from the lift gate (1).
