Flexplate - Removal






REMOVAL





1. Remove the transmission. Removal

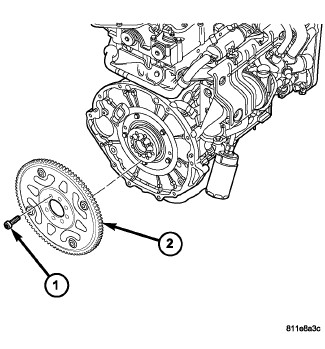

2. Remove the bolts (1) and then the flexplate (2).
